Festo
562652

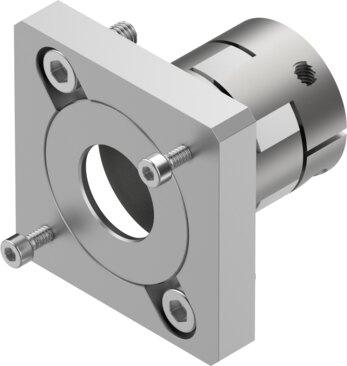

Axial kit EAMM-A-P8-38A-40A
The Festo part number 562652 is an industrial component featuring a nominal length of 9 mm, a product weight of 100 g, and a mass moment of inertia of 5.87 kgmm². This RoHS compliant assembly operates at a maximum rotational speed of 8000 rpm with a transferable torque of 6.5 Nm, while accommodating any mounting position across an ambient temperature range of -10 °C to 60 °C. It is equipped with actuator interface code P8-38A, motor-in interface code 40A, and coupling housing interface code 38A.2, alongside an IP40 degree of protection and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562652
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562652.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 100 g
- Interface code, actuator
- P8-38A
- Interface code, motor in
- 40A
- Interface code, coupling housing
- 38A.2
- Note on materials
- RoHS compliant
