Festo
562658

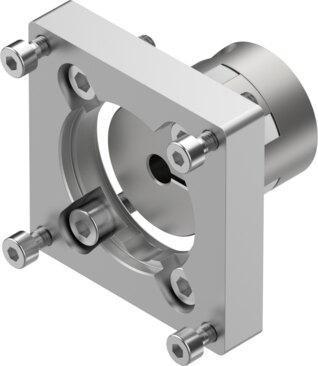

Axial kit EAMM-A-P10-38A-57A
The Festo 562658 industrial component features a nominal length of 11 mm, a product weight of 130 g, and a mass moment of inertia of 5.87 kgmm². Operating at a maximum rotational speed of 8,000 rpm, this RoHS-compliant unit delivers a transferable torque of 6.5 Nm and is built with actuator interface code P10-38A, motor in interface code 57A, and coupling housing interface code 38A. It functions across an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity up to 95% while maintaining an IP40 degree of protection and VDMA24364-B2-L LABS conformity in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 11 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 130 g
- Interface code, actuator
- P10-38A
- Interface code, motor in
- 57A
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562658. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
