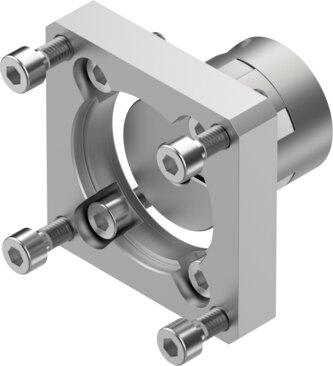

Reference imageConfirm configuration by manufacturer part number.
Festo
562659
Axial kit EAMM-A-P10-38A-55A
The Festo 562659 industrial component features a nominal length of 11 mm, a transferable torque of 12.5 Nm, and a maximum rotational speed of 8000 rpm with a mass moment of inertia of 5.87 kgmm². Weighing 130 g and featuring RoHS compliant materials with VDMA24364-B2-L LABS conformity, this part operates within ambient temperatures of -10 °C to 60 °C and relative air humidity from 0 to 95% at an IP40 degree of protection. It utilizes actuator interface code P10-38A, motor-in interface code 55A, and coupling housing interface code 38A, supporting mounting in any position and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562659
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562659.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 11 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 130 g
- Interface code, actuator
- P10-38A
- Interface code, motor in
- 55A
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562659. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
