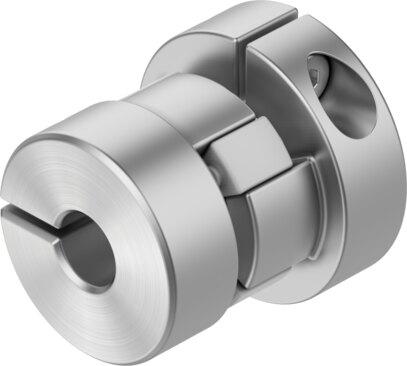

Reference imageConfirm configuration by manufacturer part number.
Festo
562676
Coupling EAMC-16-20-5-5
The Festo 562676 industrial component features a size 16 design with a nominal length of 20 mm and dual 5 mm holders. Weighing 8 g, this part supports a maximum rotational speed of 10000 rpm, a transferable torque of 1.1 Nm, and a mass moment of inertia of 0.28 kgmm² for installation in any mounting position. Operating and storing within a temperature range of -25 °C to 60 °C and 0 to 95% relative air humidity, the assembly complies with VDMA24364-B2-L LABS conformity and RoHS material requirements. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562676
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562676.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 5 mm
- Diameter of holder 2
- 5 mm
- Size
- 16
- Nominal length
- 20 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.1 Nm
- Product weight
- 8 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562676. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
