Festo
562679

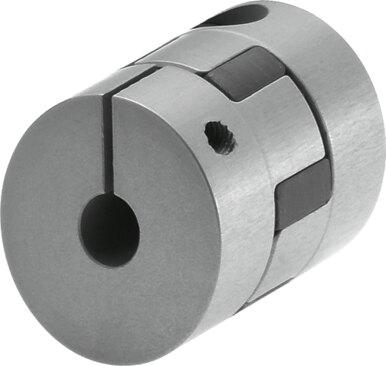

Coupling EAMC-30-32-6.35-10
The Festo size 30 industrial component features a nominal length of 32 mm, a 6.35 mm diameter for holder 1, and a 10 mm diameter for holder 2, with a product weight of 48 g and RoHS compliant materials. It operates at a maximum rotational speed of 8,000 rpm, delivers a transferable torque of 6.5 Nm, maintains a mass moment of inertia of 5.87 kgmm², and conforms to VDMA24364-B2-L LABS (PWIS) standards for ambient and storage temperatures between -25 °C and 60 °C with 0 to 95% relative air humidity in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562679
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562679.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 6.35 mm
- Diameter of holder 2
- 10 mm
- Size
- 30
- Nominal length
- 32 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 48 g
- Note on materials
- RoHS compliant
