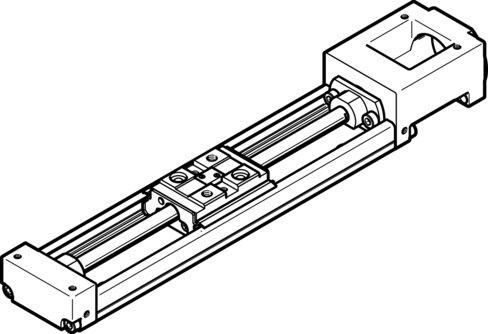

Reference imageConfirm configuration by manufacturer part number.
Festo
562749
Electric linear slide EGSK-15- -
The Festo 562749 is an electromechanical linear axis with a ball screw, featuring a size 15 profile and a 5 mm screw diameter. Equipped with a recirculating ball bearing guide, this component delivers a working stroke between 25 mm and 100 mm, a repetition accuracy of ±0.003 to ±0.004 mm, and a maximum feed force ranging from 19 N to 57 N. It operates within an ambient temperature range of 0 °C to 40 °C, achieves a maximum speed of 0.16 m/s to 0.33 m/s at an acceleration up to 10 m/s², and features IP10 protection with zero corrosion stress resistance. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562749
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562749.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 25 mm...100 mm
- Size
- 15
- Screw diameter
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.16 m/s...0.33 m/s
- Repetition accuracy
- ±0.003 - ±0.004 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 590 N
- Linear guide dynamic basic load rating
- 1532 N
- 2nd moment of area Iy
- 910 mm⁴
- 2nd moment of area Iz
- 14200 mm⁴
- Max. feed force Fx
- 19 N...57 N
- Linear guide statistical basic load rating
- 3450 N
- Mass moment of inertia JH per meter of stroke
- 0.0048 kgcm²
- Feed constant
- 1 mm/U...2 mm/U
- Statistical xed bearing load rating
- 290 N
- Type of mounting
- With internal thread and centering sleeve
- Material of end caps
- Die-cast aluminum | Coated
- Prole material
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Drive cover material
- Die-cast aluminum | Coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562749. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
