Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

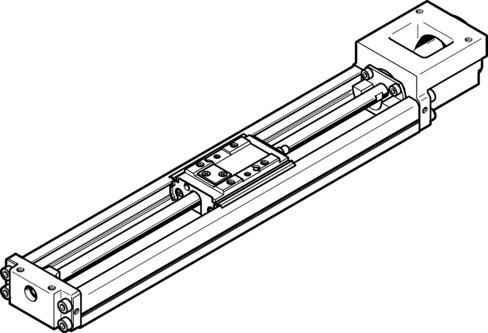

Reference imageConfirm configuration by manufacturer part number.
Festo
562750
Electric linear slide EGSK-20- -
The Festo 562750 is an electromechanical linear axis with a ball screw, featuring a size 20 structural design and a 6 mm screw diameter. This component incorporates a recirculating ball bearing guide, a reference switch for homing, and supports a working stroke ranging from 25 mm to 125 mm in any mounting position. It achieves a max acceleration of 10 m/s², speeds from 0.19 m/s to 1.1 m/s, repetition accuracy between ±0.003 and ±0.01 mm, and feed forces from 69 N to 133 N under an ambient temperature of 0 °C to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562750
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562750.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 25 mm...125 mm
- Size
- 20
- Screw diameter
- 6 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.19 m/s...1.1 m/s
- Repetition accuracy
- ±0.003 - ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1000 N
- Linear guide dynamic basic load rating
- 2849 N
- 2nd moment of area Iy
- 6100 mm⁴
- 2nd moment of area Iz
- 62000 mm⁴
- Max. feed force Fx
- 69 N...133 N
- Linear guide statistical basic load rating
- 6300 N
- Mass moment of inertia JH per meter of stroke
- 0.01 kgcm²
- Feed constant
- 1 mm/U...6 mm/U
- Statistical xed bearing load rating
- 1240 N
- Type of mounting
- With internal thread and dowel pin
- Material of end caps
- Die-cast aluminum | Coated
- Prole material
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Drive cover material
- Die-cast aluminum | Coated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562750. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
