Festo
562752

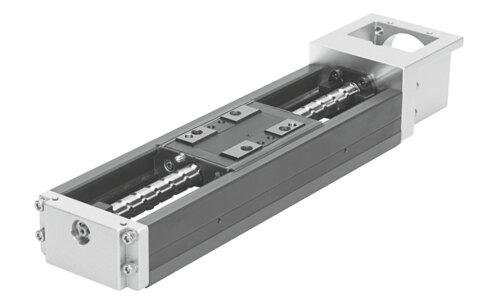

Electric linear slide EGSK-33- -
The Festo part number 562752 is an electromechanical linear axis featuring a ball screw structural design with a size 33 profile and a 10 mm screw diameter. This component provides a working stroke from 100 mm to 630 mm, a recirculating ball bearing guide, a reference switch for homing, and a repetition accuracy between ±0.003 mm and ±0.01 mm. It achieves a maximum speed ranging from 0.395 m/s to 1.1 m/s, a maximum acceleration of 20 m²/s, and a maximum feed force Fx from 148 N to 239 N with a fixed bearing dynamic basic load rating of 1790 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562752
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562752.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm...630 mm
- Size
- 33
- Screw diameter
- 10 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 0.395 m/s...1.1 m/s
- Repetition accuracy
- ±0.003 - ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1790 N
- 2nd moment of area Iy
- 62000 mm⁴
- 2nd moment of area Iz
- 380000 mm⁴
- Max. feed force Fx
- 148 N...239 N
- Mass moment of inertia JH per meter of stroke
- 0.0771 kgcm²
- Feed constant
- 6 mm/U...10 mm/U
- Statistical xed bearing load rating
- 2590 N
- Type of mounting
- With internal thread and dowel pin
- Material of end caps
- Die-cast aluminum | Coated
- Prole material
- Coated | High-alloy steel
- Note on materials
- RoHS compliant
- Drive cover material
- Die-cast aluminum | Coated
- Slide material
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562752. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
