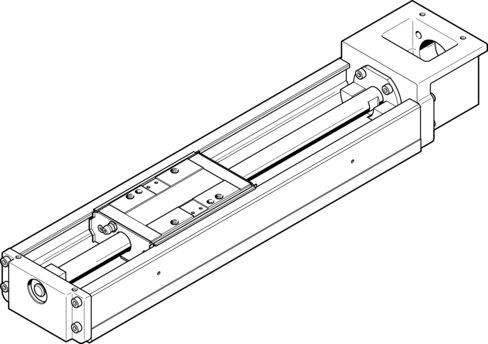

Reference imageConfirm configuration by manufacturer part number.
Festo
562753
Electric linear slide EGSK-46- -
The Festo 562753 is an electromechanical linear axis featuring a ball screw structural design with a 15 mm screw diameter, size 46, and a working stroke range of 200 mm to 840 mm. This component incorporates a recirculating ball bearing guide, a reference switch for homing, and achieves a maximum acceleration of 20 m/s², a speed range of 0.43 m/s to 1.48 m/s, and a repetition accuracy between ±0.003 and ±0.01 mm. It operates within an ambient temperature of 0 °C to 40 °C, providing a fixed bearing dynamic basic load rating of 6600 N, a maximum feed force Fx of 192 N to 392 N, and an IP10 degree of protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562753
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562753.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm...840 mm
- Size
- 46
- Screw diameter
- 15 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 0.43 m/s...1.48 m/s
- Repetition accuracy
- ±0.003 - ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 6600 N
- 2nd moment of area Iy
- 240000 mm⁴
- 2nd moment of area Iz
- 1500000 mm⁴
- Max. feed force Fx
- 192 N...392 N
- Mass moment of inertia JH per meter of stroke
- 0.39 kgcm²
- Feed constant
- 10 mm/U...20 mm/U
- Statistical xed bearing load rating
- 3240 N
- Type of mounting
- With internal thread and dowel pin
- Material of end caps
- Die-cast aluminum | Coated
- Prole material
- Coated | High-alloy steel
- Note on materials
- RoHS compliant
- Drive cover material
- Die-cast aluminum | Coated
- Slide material
- Steel
