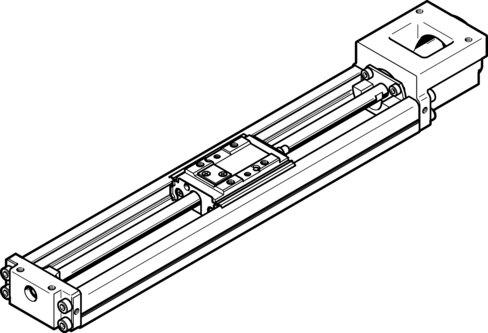

Reference imageConfirm configuration by manufacturer part number.
Festo
562759
Electric linear slide EGSK-20-75-1P
The Festo 562759 is an electromechanical linear axis featuring a ball screw structural design with a 75 mm working stroke, a size 20 profile, and an integrated recirculating ball bearing guide. This unit delivers a max speed of 0.19 m/s, a max acceleration of 10 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 20 µm driven by a 6 mm screw diameter with a 1 mm/U spindle pitch. Designed with any mounting position, reference switch homing, IP10 protection, and a CRC of 0, it operates in ambient temperatures from 0 °C to 40 °C with dynamic load ratings of 1000 N for the fixed bearing, 2849 N for the linear guide, and 660 N for the ball screw drive. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562759
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562759.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 75 mm
- Size
- 20
- Reversing backlash
- 20 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 1 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.19 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1000 N
- Linear guide dynamic basic load rating
- 2849 N
- Dynamic basic load rating, ball screw drive
- 660 N
- 2nd moment of area Iy
- 6100 mm⁴
- 2nd moment of area Iz
- 62000 mm⁴
- Max. driving torque
- 0.011 Nm
- Max. force Fy
- 1389 N
- Max. force Fz
- 1389 N
- Max. torque Mx
- 18.1 Nm
- Max. torque My
- 5.8 Nm
- Max. torque Mz
- 5.8 Nm
- Max. feed force Fx
- 69 N
- No-load driving torque
- 0.005 Nm
- Ball screw drive statistical basic load rating
- 1170 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562759. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
