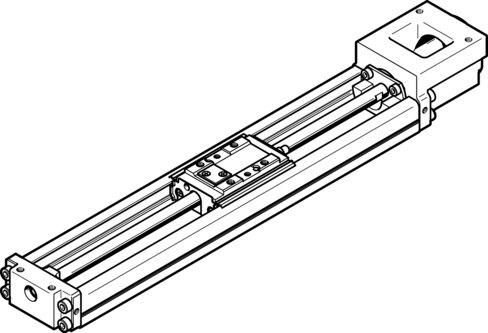

Reference imageConfirm configuration by manufacturer part number.
Festo
562760
Electric linear slide EGSK-20-125-1P
The Festo 562760 is an electromechanical linear axis with a ball screw featuring a size 20 design, a 125 mm working stroke, a 6 mm screw diameter, and a 1 mm/U spindle pitch. This unit integrates a recirculating ball bearing guide, reference switch homing, a 20 µm reversing backlash, a maximum speed of 0.19 m/s, a maximum acceleration of 10 m/s², and a repetition accuracy of ±0.01 mm, operating within an ambient temperature range of 0 °C to 40 °C. Structural metrics include an IP10 degree of protection, CRC 0 corrosion resistance, VDMA24364 Zone III LABS conformity, any mounting position, a ball screw drive dynamic basic load rating of 660 N, a fixed bearing dynamic basic load rating of 1000 N, and a linear guide dynamic basic load rating of 2849 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562760
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562760.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 125 mm
- Size
- 20
- Reversing backlash
- 20 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 1 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.19 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1000 N
- Linear guide dynamic basic load rating
- 2849 N
- Dynamic basic load rating, ball screw drive
- 660 N
- 2nd moment of area Iy
- 6100 mm⁴
- 2nd moment of area Iz
- 62000 mm⁴
- Max. driving torque
- 0.011 Nm
- Max. force Fy
- 1389 N
- Max. force Fz
- 1389 N
- Max. torque Mx
- 18.1 Nm
- Max. torque My
- 5.8 Nm
- Max. torque Mz
- 5.8 Nm
- Max. feed force Fx
- 69 N
- No-load driving torque
- 0.005 Nm
- Ball screw drive statistical basic load rating
- 1170 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562760. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
