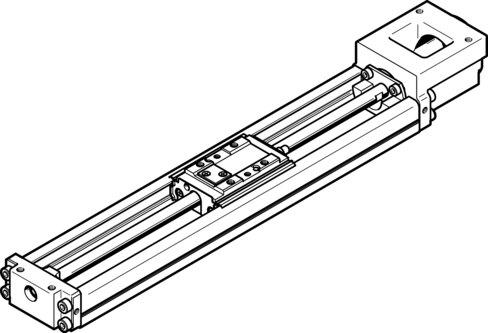

Reference imageConfirm configuration by manufacturer part number.
Festo
562761
Electric linear slide EGSK-20-25-6P
The Festo 562761 is an electromechanical linear axis featuring a ball screw structural design with a size 20 footprint, a 25 mm working stroke, and a 6 mm screw diameter with a 6 mm/U spindle pitch. It incorporates a recirculating ball bearing guide providing a 2849 N linear guide dynamic basic load rating, a 1000 N fixed bearing dynamic basic load rating, and an 860 N ball screw drive dynamic basic load rating, accompanied by a 20 µm reversing backlash and a repetition accuracy of ±0.01 mm. Operational parameters include a maximum speed of 0.79 m/s, a maximum acceleration of 10 m/s², reference switch homing, any mounting position, an IP10 degree of protection, and an ambient temperature range of 0 °C to 40 °C within CRC 0 corrosion resistance and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562761
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562761.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 25 mm
- Size
- 20
- Reversing backlash
- 20 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 6 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.79 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1000 N
- Linear guide dynamic basic load rating
- 2849 N
- Dynamic basic load rating, ball screw drive
- 860 N
- 2nd moment of area Iy
- 6100 mm⁴
- 2nd moment of area Iz
- 62000 mm⁴
- Max. driving torque
- 0.069 Nm
- Max. force Fy
- 764 N
- Max. force Fz
- 764 N
- Max. torque Mx
- 9.9 Nm
- Max. torque My
- 3.2 Nm
- Max. torque Mz
- 3.2 Nm
- Max. feed force Fx
- 72 N
- No-load driving torque
- 0.005 Nm
- Ball screw drive statistical basic load rating
- 1450 N
