Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

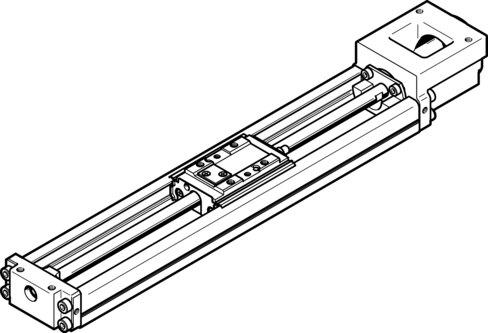

Reference imageConfirm configuration by manufacturer part number.
Festo
562763
Electric linear slide EGSK-20-125-6P
The Festo electromechanical linear axis, part number 562763, features a size 20 structural design with a ball screw spindle type, a 6 mm screw diameter, and a 6 mm/U spindle pitch providing a 125 mm working stroke. This unit incorporates a recirculating ball bearing guide, a reference switch for homing, a reversing backlash of 20 µm, a repetition accuracy of ±0.01 mm, a maximum speed of 0.79 m/s, and a maximum acceleration of 10 m/s². Operating within an ambient temperature range of 0 °C to 40 °C with an IP10 degree of protection, it offers a fixed bearing dynamic basic load rating of 1000 N, a linear guide dynamic basic load rating of 2849 N, and a ball screw drive dynamic basic load rating of 860 N, with any mounting position, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562763
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562763.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 125 mm
- Size
- 20
- Reversing backlash
- 20 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 6 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.79 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1000 N
- Linear guide dynamic basic load rating
- 2849 N
- Dynamic basic load rating, ball screw drive
- 860 N
- 2nd moment of area Iy
- 6100 mm⁴
- 2nd moment of area Iz
- 62000 mm⁴
- Max. driving torque
- 0.069 Nm
- Max. force Fy
- 764 N
- Max. force Fz
- 764 N
- Max. torque Mx
- 9.9 Nm
- Max. torque My
- 3.2 Nm
- Max. torque Mz
- 3.2 Nm
- Max. feed force Fx
- 72 N
- No-load driving torque
- 0.005 Nm
- Ball screw drive statistical basic load rating
- 1450 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562763. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
