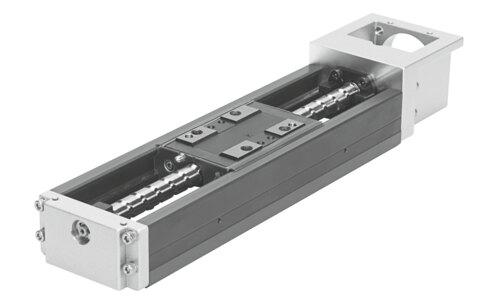

Reference imageConfirm configuration by manufacturer part number.
Festo
562776
Electric linear slide EGSK-33-500-6P
The Festo 562776 is an electromechanical linear axis with a ball screw featuring a 33 size, a 500 mm working stroke, a 10 mm screw diameter, and a 6 mm/U spindle pitch. This component achieves a maximum speed of 0.47 m/s, a maximum acceleration of 20 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 20 µm, supported by a recirculating ball bearing guide and a reference switch homing configuration. Operating within an ambient temperature range of 0 °C to 40 °C, it provides an IP10 degree of protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity with any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562776
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562776.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 33
- Reversing backlash
- 20 µm
- Screw diameter
- 10 mm
- Spindle pitch
- 6 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 0.47 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 1790 N
- Linear guide dynamic basic load rating
- 9207 N
- Dynamic basic load rating, ball screw drive
- 2840 N
- 2nd moment of area Iy
- 62000 mm⁴
- 2nd moment of area Iz
- 380000 mm⁴
- Max. driving torque
- 0.14 Nm
- Max. force Fy
- 2469 N
- Max. force Fz
- 2469 N
- Max. torque Mx
- 50.1 Nm
- Max. torque My
- 16.4 Nm
- Max. torque Mz
- 16.4 Nm
- Max. feed force Fx
- 150 N
- No-load driving torque
- 0.07 Nm
- Ball screw drive statistical basic load rating
- 4900 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562776. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
