Festo
562789

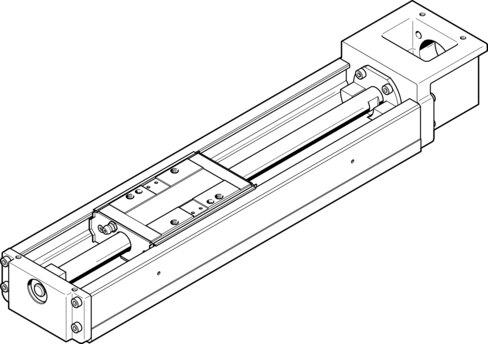

Electric linear slide EGSK-46-800-10P
The Festo 562789 is an electromechanical linear axis featuring a ball screw structural design with a size 46 profile and an 800 mm working stroke. This unit incorporates a recirculating ball bearing guide, a 15 mm screw diameter with a 10 mm/U spindle pitch, a reversing backlash of 20 µm, and a reference switch for homing. Operating parameters include a maximum speed of 0.52 m/s, a maximum acceleration of 20 m/s², and a repetition accuracy of ±0.01 mm across an ambient temperature range of 0 °C to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 800 mm
- Size
- 46
- Reversing backlash
- 20 µm
- Screw diameter
- 15 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 0.52 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 6600 N
- Linear guide dynamic basic load rating
- 21747 N
- Dynamic basic load rating, ball screw drive
- 3140 N
- 2nd moment of area Iy
- 240000 mm⁴
- 2nd moment of area Iz
- 1500000 mm⁴
- Max. driving torque
- 0.42 Nm
- Max. force Fy
- 4919 N
- Max. force Fz
- 4919 N
- Max. torque Mx
- 145 Nm
- Max. torque My
- 48.7 Nm
- Max. torque Mz
- 48.7 Nm
- Max. feed force Fx
- 264 N
- No-load driving torque
- 0.1 Nm
- Ball screw drive statistical basic load rating
- 6760 N
