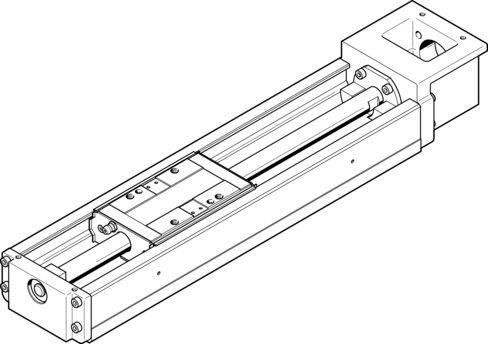

Reference imageConfirm configuration by manufacturer part number.
Festo
562792
Electric linear slide EGSK-46-400-20P
The Festo 562792 is an electromechanical linear axis featuring a ball screw structural design with a 400 mm working stroke, size 46 profile, 15 mm screw diameter, and 20 mm/U spindle pitch. It utilizes a recirculating ball bearing guide and a reference switch for homing, delivering a maximum speed of 1.05 m/s, a maximum acceleration of 20 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 20 µm. Operating within an ambient temperature range of 0 °C to 40 °C, the unit features an IP10 degree of protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity with any mounting position. Dynamic basic load ratings are specified at 6600 N for the fixed bearing, 21747 N for the linear guide, and 3040 N for the ball screw drive. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 46
- Reversing backlash
- 20 µm
- Screw diameter
- 15 mm
- Spindle pitch
- 20 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 1.05 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 6600 N
- Linear guide dynamic basic load rating
- 21747 N
- Dynamic basic load rating, ball screw drive
- 3040 N
- 2nd moment of area Iy
- 240000 mm⁴
- 2nd moment of area Iz
- 1500000 mm⁴
- Max. driving torque
- 0.61 Nm
- Max. force Fy
- 3904 N
- Max. force Fz
- 3904 N
- Max. torque Mx
- 115 Nm
- Max. torque My
- 38.7 Nm
- Max. torque Mz
- 38.7 Nm
- Max. feed force Fx
- 192 N
- No-load driving torque
- 0.1 Nm
- Ball screw drive statistical basic load rating
- 7150 N
