Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

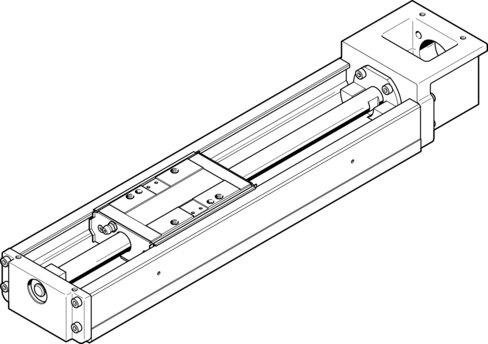

Reference imageConfirm configuration by manufacturer part number.
Festo
562793
Electric linear slide EGSK-46-500-20P
The Festo 562793 is an electromechanical linear axis featuring a ball screw structural design with a 46 size, a 500 mm working stroke, a 15 mm screw diameter, and a 20 mm/U spindle pitch. It operates with a recirculating ball bearing guide, achieving a max speed of 1.05 m/s, a max acceleration of 20 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 20 µm via a reference switch homing configuration. This unit incorporates a fixed bearing dynamic basic load rating of 6600 N, a linear guide dynamic basic load rating of 21747 N, and a ball screw drive dynamic basic load rating of 3040 N, functioning within an ambient temperature range of 0 °C to 40 °C under an IP10 degree of protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 46
- Reversing backlash
- 20 µm
- Screw diameter
- 15 mm
- Spindle pitch
- 20 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Homing
- Reference switch
- Spindle type
- Ball screw
- Max. acceleration
- 20 m/s²
- Max. speed
- 1.05 m/s
- Repetition accuracy
- ±0.01 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP10
- Ambient temperature
- 0 °C...40 °C
- Fixed bearing dynamic basic load rating
- 6600 N
- Linear guide dynamic basic load rating
- 21747 N
- Dynamic basic load rating, ball screw drive
- 3040 N
- 2nd moment of area Iy
- 240000 mm⁴
- 2nd moment of area Iz
- 1500000 mm⁴
- Max. driving torque
- 0.61 Nm
- Max. force Fy
- 3904 N
- Max. force Fz
- 3904 N
- Max. torque Mx
- 115 Nm
- Max. torque My
- 38.7 Nm
- Max. torque Mz
- 38.7 Nm
- Max. feed force Fx
- 192 N
- No-load driving torque
- 0.1 Nm
- Ball screw drive statistical basic load rating
- 7150 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
