562818

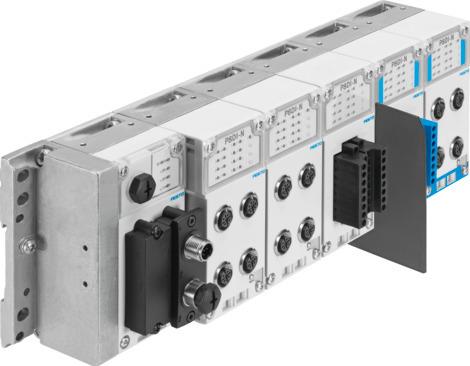

Name: Festo 562818 Terminal CPX-P
Brand: Festo

Terminal CPX-P

The Festo part number 562818 is an industrial component featuring fieldbus electrical actuation with an integrated controller supporting a maximum of 10 modules. It provides IP20 and IP65 protection, VDMA24364-B2-L LABS conformity, and operation within an ambient temperature range of -5 °C to 50 °C. The unit includes diagnostic capabilities, LED indicators for system, bus, channel, and module status, and an address capacity of 64 bytes each for inputs and outputs. Certifications and markings comprise CE, UKCA, KC EMC, RCM, c UL us Recognized, and ATEX Zone 2 gas explosion protection for hazardous environments. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 562818
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 562818.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Fieldbus | Integrated controller
Max. number of modules: 10
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP20 | IP65
LABS (PWIS) conformity: VDMA24364-B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC EMC
Certication: RCM compliance mark | c UL us - Recognized (OL)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (BR) | Zone 2 (UKEX)
ATEX category gas: II 3G
Explosion protection certication outside the EU: EPL Gc (BR) | EPL Gc (GB)
Type of ignition protection for gas: Ex ec IIC T4 Gc X
Explosive ambient temperature: -5°C <= Ta <= +50°C
Certicate issuing authority: DNV 15.0193 X
LED indicators: Bus status | Channel status | Module status | System status
Diagnostics: Diagnostic memory | Channel-oriented and module-oriented diagnostics | Undervoltage of modules
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 562818. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
