Festo
562902

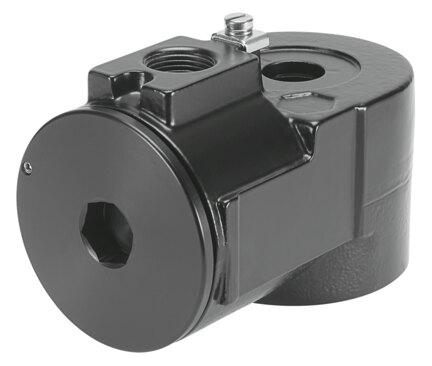

Solenoid coil VACC-S18-25-K5-3U-EX4D
The Festo 562902 is an electrical industrial component featuring a 100% duty cycle, Class H insulation, and coil characteristics of 230 V AC (50/60 Hz, 2.5 VA) or 230 V DC (2.5 W) with permissible voltage fluctuations of -15% / +10%. Certified for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, it includes ATEX, IECEx, and UKEX compliance alongside an IP65 degree of protection and corrosion resistance class 4 for particularly high corrosion stress. This unit can be mounted in any position, operates without a switching position indication, and holds certificate issuing authorities BVS15ATEXE135 and IECExBVS.15.0116. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562902
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562902.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 230 V AC: 50/60 Hz, power 2.5 VA | 230 V DC: 2.5 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS15ATEXE135 | IECExBVS.15.0116
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex db IIC T6, T5, T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T80°C,95°C,130°C Db
- Explosive ambient temperature
- T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
