Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

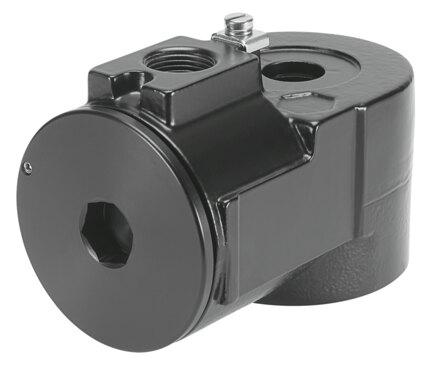

Reference imageConfirm configuration by manufacturer part number.
Festo
562904
Solenoid coil VACC-S18-25-K4-2U-EX4D
The Festo 562904 is an electrical industrial component with any mounting position, a 100% duty cycle, class H insulation, and no switching position indication. Its coil characteristics comprise 110 V AC at 50/60 Hz with a power of 2.5 VA, 110 V DC at 2.5 W, and permissible voltage fluctuations of -15% / +10%. Featuring an IP65 degree of protection, a corrosion resistance class (CRC) of 4 for particularly high corrosion stress, and VDMA24364 Zone III LABS conformity, this unit carries CE and UKCA markings alongside EPL Db and Gb explosion protection certifications under authorities BVS15ATEXE135 and IECExBVS.15.0116. It is rated for Zone 1, Zone 2, Zone 21, and Zone 22 applications with ATEX categories II 2G for gas and II 2D for dust, specifying ignition protection types Ex db IIC T6, T5, T4 Gb and Ex tb IIIC T80°C, 95°C, 130°C Db across explosive ambient temperatures ranging from -50°C to +90°C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 562904
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 562904.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 110 V AC: 50/60 Hz, power 2.5 VA | 110 V DC: 2.5 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS15ATEXE135 | IECExBVS.15.0116
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex db IIC T6, T5, T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T80°C,95°C,130°C Db
- Explosive ambient temperature
- T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 562904. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
