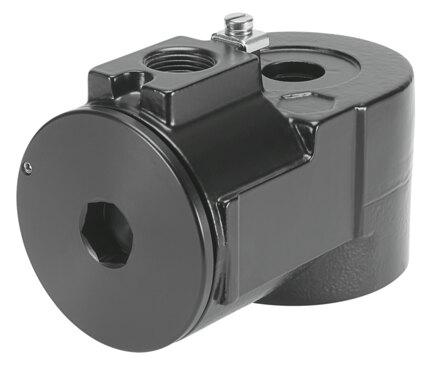

Name: Festo 562905 Solenoid coil VACC-S18-25-K4-3U-EX4D
Brand: Festo

Solenoid coil VACC-S18-25-K4-3U-EX4D

Engineered for electrical actuation with a 100% duty cycle, this Festo industrial component operates on 230 V AC (50/60 Hz at 2.5 VA) or 230 V DC (2.5 W) with permissible voltage fluctuations of -15% / +10% and insulation class H. Certified for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous environments, it features IP65 protection, a corrosion resistance class of CRC 4, and ATEX/IECEx/UKEX explosion protection certifications for gas and dust. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 562905
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 562905.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Switching position indication: No
Duty cycle: 100%
Insulation class: H
Coil characteristics: 230 V AC: 50/60 Hz, power 2.5 VA | 230 V DC: 2.5 W
Permissible voltage uctuations: -15% / +10%
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
Certicate issuing authority: BVS15ATEXE135 | IECExBVS.15.0116
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex db IIC T6, T5, T4 Gb
Type of (ignition) protection for dust: Ex tb IIIC T80°C,95°C,130°C Db
Explosive ambient temperature: T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 562905. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
