Festo
563395

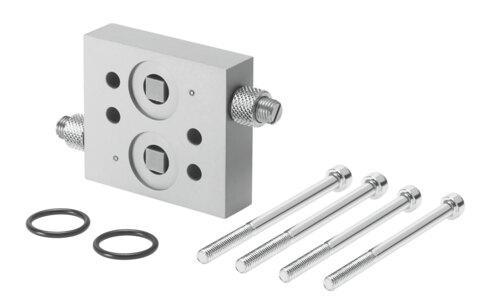

Throttle plate VABF-S7-F1B1P2-F
This Festo industrial component, part number 563395, operates with compressed air as per ISO 8573-1:2010 [7:-:-] at an operating pressure from 0 MPa to 1.2 MPa (0 bar to 12 bar) with either an internal or external pilot air supply port. Constructed with an ematal-coated aluminum sub-base and NBR seals, the unit features a CRC 4 rating for particularly high corrosion stress, VDMA24364 Zone III LABS conformity, RoHS compliance, an IP65 degree of protection, and ATEX certification for Zones 1, 2, 21, and 22. It accommodates any mounting position using through-holes and includes G1/4 pneumatic connections 1, 3, and pilot port 12 alongside a flange 1/4 and NAMUR connection pattern for pneumatic connection 2. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563395
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563395.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pilot air supply port
- External | Internal
- Operating pressure
- 0 MPa...1.2 MPa | 0 bar...12 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/4
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- Flange 1/4 | NAMUR connection pattern
- Pneumatic connection 3
- G1/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum, ematal coated
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 563395. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
