Festo
563397

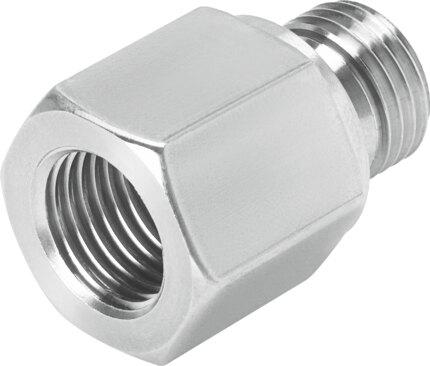

Adapter NPFV-AF-G14-N14-MF
The Festo 563397 is an industrial component featuring a 6 mm nominal width, G1/4 pneumatic connection 1, and 1/4 NPT pneumatic connection 2. Fabricated with a high-alloy stainless steel adapter and NBR seals, it operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) while maintaining a CRC rating of 1 for low corrosion stress and VDMA24364 Zone III LABS conformity with RoHS-compliant materials. This unit is certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection environments. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563397
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563397.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6 mm
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- 1/4 NPT
- Note on materials
- RoHS compliant
- Adapter material
- high-alloy stainless steel
- Seals material
- NBR
