Festo
563398

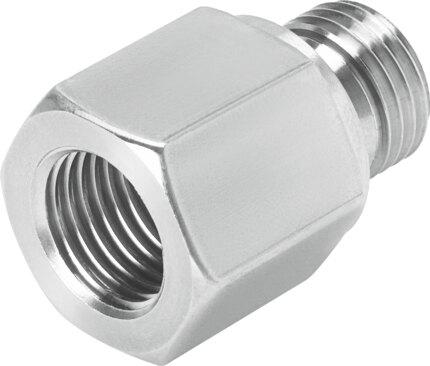

Adapter NPFV-AF-G14-G14-MF
The Festo part number 563398 is an industrial component featuring a nominal width of 6 mm and operating pressures from 0.2 MPa to 0.8 MPa (2 bar to 8 bar). Constructed with high-alloy stainless steel adapters and NBR seals, this RoHS-compliant assembly includes G1/4 pneumatic connections on both ports and carries a CRC 1 low corrosion stress rating alongside VDMA24364 Zone III LABS conformity. It is rated for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection environments. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563398
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563398.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6 mm
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Adapter material
- high-alloy stainless steel
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 563398. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
