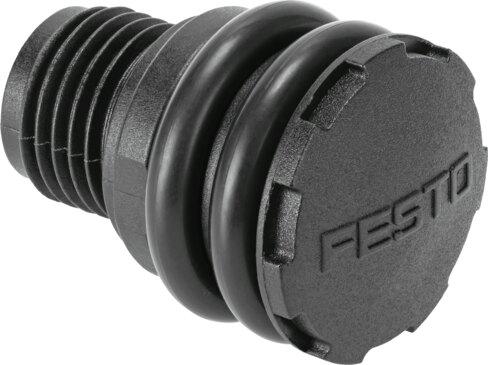

Reference imageConfirm configuration by manufacturer part number.
Festo
563400
Exhaust protection VABD-D3-SN-G14
The Festo 563400 is an industrial component designed with an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) for compressed air media conforming to ISO 8573-1:2010 [7:-:-]. It features an any-position screw-in mounting type with an external thread, EPDM seals, a PA vent screw, and RoHS-compliant materials that achieve VDMA24364 Zone III LABS conformity. With an IP65 degree of protection and an ambient temperature range of -50 °C to 60 °C, this unit provides ATEX explosion prevention and protection for Zone 1, Zone 2, Zone 21, and Zone 22 environments. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563400
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563400.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Ambient temperature
- -50 °C...60 °C
- Type of mounting
- Screw-in | With external thread
- Note on materials
- RoHS compliant
- Seals material
- EPDM
- Vent screw material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 563400. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
