Festo
563401

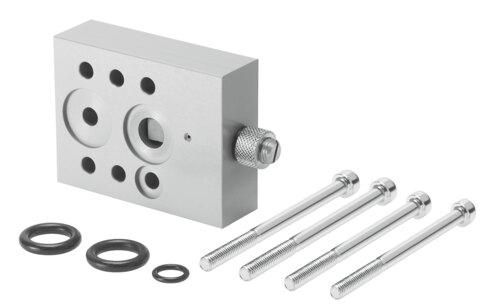

Throttle plate VABF-S7-F1B5P1-F
The Festo 563401 industrial component features any mounting position and accepts an internal or external pilot air supply port with G1/4 pilot air port 12, pneumatic connection 1, and pneumatic connection 3. This device operates at pressures from 0 MPa to 1.2 MPa (0 bar to 12 bar) using compressed air as per ISO 8573-1:2010 [7:-:-], and includes a flange 1/4 or NAMUR connection pattern for pneumatic connection 2. Constructed with an ematal-coated aluminum sub-base, NBR seals, and through-hole mounting, it achieves an IP65 degree of protection, RoHS compliance, VDMA24364 Zone III LABS conformity, and CRC 4 particularly high corrosion stress resistance while supporting ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563401
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563401.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pilot air supply port
- External | Internal
- Operating pressure
- 0 MPa...1.2 MPa | 0 bar...12 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/4
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- Flange 1/4 | NAMUR connection pattern
- Pneumatic connection 3
- G1/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum, ematal coated
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 563401. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
