Festo
563711

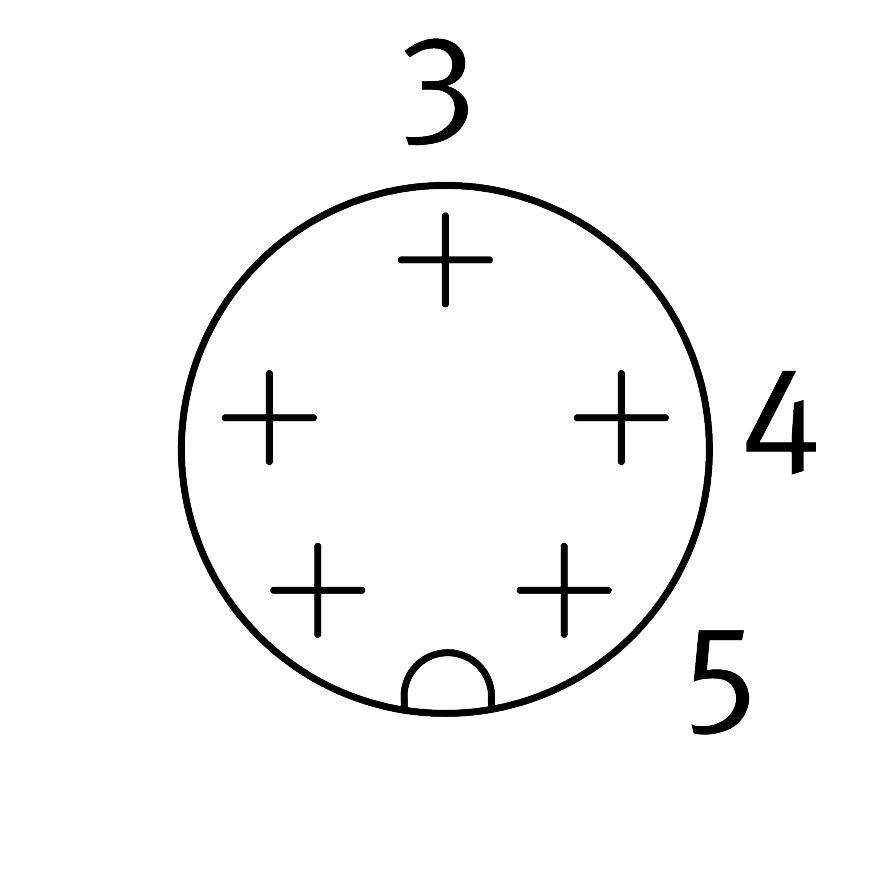

Connecting cable NEBC-M9W5-K-2-N-LE3
The Festo part number 563711 is a shielded industrial component weighing 108 g with accessories included for field device and control side connections. Electrical connection 1 features an open-end cable with 5 pins/wires and 3 occupied pins/wires, while electrical connection 2 utilizes an angled M9x0.5 round plug with a screw-type lock, 5 pins/wires, and 3 occupied pins/wires. This unit operates within a DC voltage range of 0 V to 30 V, a current rating of 1.6 A at 40°C, a surge resistance of 0.5 kV, and supports an acceptable current load at 40°C of 2.3 A for 0.34 mm² or 3.6 A for 0.49 mm². Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563711
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563711.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With accessories
- Product weight
- 108 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Note on acceptable current load at 40°C
- 2.3 A for 0.34 mm² | 3.6 A for 0.49 mm²
- Surge resistance
- 0.5 kV
- Shield
- Yes
- Cable length
- 2 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 5.5 mm
- Cable design
- 2 x 0.25 mm² + 2 x 0.34 mm² + 0.49 mm²
- Nominal conductor cross section
- 0.25 mm² | 0.34 mm² | 0.49 mm²
