Festo
563732

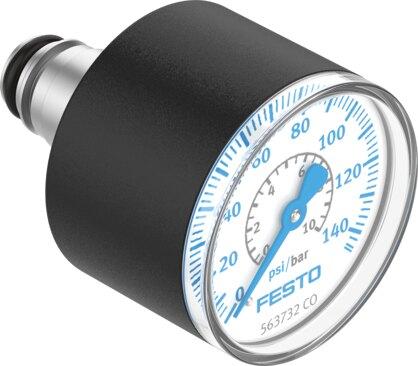

Pressure gauge PAGN-26-145P-P10
The Festo 563732 is a Bourdon tube pressure gauge featuring a nominal size of 26, a centered rear pneumatic connection with a 10 mm cartridge, and an in-line installation design with an IP43 degree of protection. Operating within a 0 bar to 10 bar (0 psi to 145 psi) range for both display and operating pressure, it accommodates neutral liquids and inert gases from -20 °C to 60 °C, excluding oxygen and acetylene. Built with a PA housing, brass screwed plug, and brass media-contacting materials, this ATEX-certified component for Zones 1, 2, 21, and 22 meets RoHS and VDMA24364-B1/B2-L LABS conformity standards with a measurement accuracy class of 4 and an intermittent load factor of 0.66. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 563732
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 563732.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar | 0 psi...145 psi
- Pressure gauge nominal size
- 26
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- Cartridge 10 mm
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PA
- Inspection window material
- PS
