563796

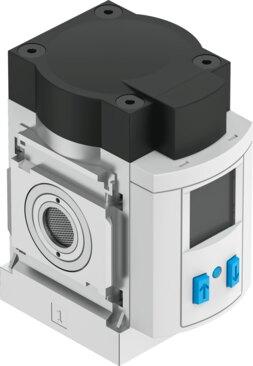

Name: Festo 563796 Flow sensor SFAM
Brand: Festo

Flow sensor SFAM

The Festo industrial component, part number 563796, measures pressure from 0 to 1.6 MPa (16 bar) and flow rates spanning a start value of 10 l/min to 150 l/min up to an end value of 1000 l/min to 15000 l/min, operating with compressed air as per ISO 8573-1:2010 [7:4:4], argon, carbon dioxide, and nitrogen. It features RCM compliance, c UL us recognition, ATEX certification for Zone 2 and Zone 22, and CE marking per EU directives for EMC, explosion protection, and RoHS. Operating pressure reaches 1.6 MPa with an overload pressure of 2 MPa, and the unit functions within a medium and ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 563796
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 563796.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
Explosion prevention and protection: Zone 2 (ATEX) | Zone 22 (ATEX)
Note on materials: RoHS compliant
Flow direction: Unidirectional | From left to right | From right to left
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1.6 MPa | 16 bar
Flow measuring range start value: 10 l/min...150 l/min
Flow measuring range end value: 1000 l/min...15000 l/min
Temperature measuring range start value: 0 °C
Temperature measuring range end value: 100 °C
Operating pressure: 1.6 MPa | 16 bar | 232 psi
Overload pressure: 2 MPa | 20 bar
Operating medium: Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Nominal temperature: 23 °C
Accuracy of ow rate: ±(3% o.m.v. + 0.3% FS)
Accuracy of temperature in ± °C: 5 °C
Zero point repetition accuracy in ± %FS: 0.2 %FS
Repetition accuracy margin in ± %FS: 0.8 %FS

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 563796. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
