Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

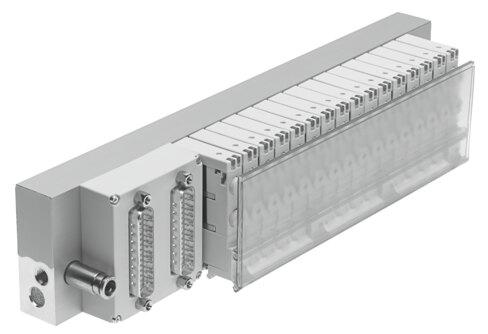

Reference imageConfirm configuration by manufacturer part number.
Festo
564056
Valve manifold VTOC
The Festo 564056 is a 10 mm industrial component featuring a 2x3/2 closed, monostable valve function with a sub-base pneumatic working port and a maximum standard nominal flow rate of 10 l/min. Operating at a nominal DC voltage of 24 V with an operating pressure range of 0 MPa to 0.8 MPa, this unit includes an LED signal status display and consumes a nominal pick-up current of 55 mA that reduces to 13 mA after 100 ms. It functions with compressed air as per ISO 8573-1:2010 [7:4:4] within a medium temperature range of -5 °C to 50 °C, and holds c UL us recognition, KC-EMV, and CE markings as per the EU EMC directive. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564056
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564056.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Valve size
- 10 mm
- Max. standard nominal ow rate
- 10 l/min at 10 mm
- Pneumatic working port
- Sub-base
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Signal status display
- LED
- Suitability for vacuum
- No
- Pick-up time
- 100 ms
- Nominal pick-up current per solenoid coil
- 55 mA up to 100 ms
- Nominal current with current reduction
- 13 mA after 100 ms
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Degree of protection
- IP40
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Electrical actuation
- I-Port | IO-Link® | Multi-pin
- Note on materials
- RoHS compliant
- Actuation type
- Electrical
- Electrical I/O system
- Yes
- Valve terminal type
- 84
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564056. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
