Festo
564113

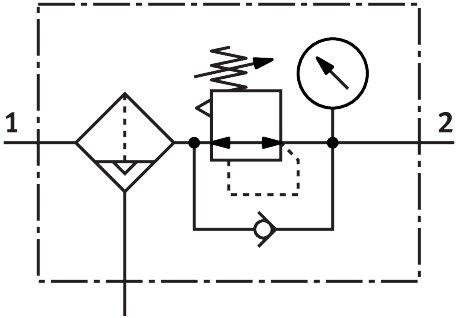

Filter regulator MS9-LFR-G-D6-EUV-DI-AG-BAR-AS
The Festo 564113 is a Size 9 MS series industrial component featuring a directly controlled compressed air filter diaphragm regulator with a 40 µm filtration grade and a fully automatic condensate drain. It provides a 220 ml max. condensate volume, a 75% degree of condensate separation, a pressure gauge, and a pressure regulation range of 0.5 bar to 12 bar operating pressure while maintaining constant output pressure with primary pressure compensation, secondary exhausting, and return flow characteristics. This unit operates within a 5 µm to 60 µm storage temperature, features a CRC of 2 for moderate corrosion stress, and maintains Class 7 cleanroom suitability measured according to ISO 14644-14. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Actuator lock
- can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- Directly controlled compressed air lter diaphragm regulator
- Max. condensate volume
- 220 ml
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Degree of condensate separation
- 75 %
- Pressure gauge
- with pressure gauge
- Operating pressure
- 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.4 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- 5 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 40 µm
- Product weight
- 2400 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Covering material
- PA-reinforced
- Material of spin disc
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564113. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
