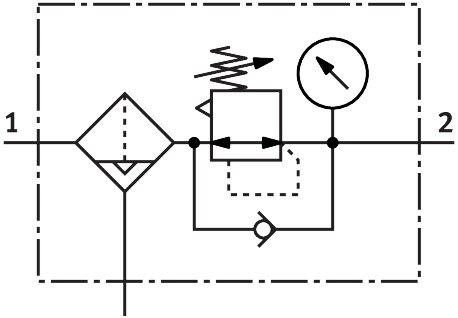

Reference imageConfirm configuration by manufacturer part number.
Festo
564115
Filter regulator MS9-LFR-G-D6-CUV-AG-BAR-AS
The Festo part number 564115 is an industrial component featuring a size 9 MS series structural design as a pilot-controlled compressed air filter diaphragm regulator with a fully automatic condensate drain and a 220 ml max condensate volume. Operating within a 2 bar to 12 bar range, it provides a 0.5 bar to 7 bar pressure regulation range, 5 µm filtration, 75 % condensate separation, and constant output pressure with primary pressure compensation, secondary exhausting, and a return flow characteristic. This unit includes a pressure gauge, is mountable vertically at ±5°, and accommodates compressed air as per ISO 8573-1:2010 [7:4:-] or inert gases with moderate corrosion stress and cleanroom suitability of ISO Class 7. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564115
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564115.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Actuator lock
- can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic
- Structural design
- Pilot-controlled compressed air lter diaphragm regulator
- Max. condensate volume
- 220 ml
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Degree of condensate separation
- 75 %
- Pressure gauge
- with pressure gauge
- Operating pressure
- 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.4 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- 5 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 5 µm
- Product weight
- 2400 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Covering material
- PA-reinforced
- Material of spin disc
- POM
