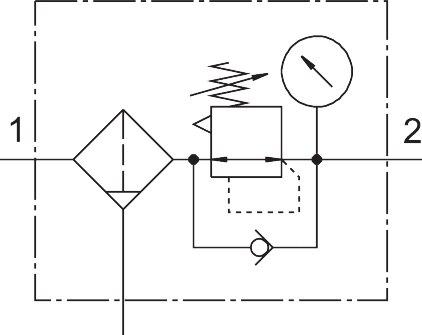

Reference imageConfirm configuration by manufacturer part number.
Festo
564124
Filter regulator MS9-LFR-NG-D6-EUM-DI-AG-PSI-AS
The Festo 564124 is an MS series size 9 industrial component featuring a directly controlled compressed air filter diaphragm regulator with a 40 µm filtration grade and a 75% degree of condensate separation. Operating within a pressure range of 1 bar to 20 bar and a regulation range of 0.5 bar to 7 bar, this unit delivers constant output pressure with primary pressure compensation, secondary exhausting, and return flow characteristics. It includes a pressure gauge, a rotating manual condensate drain with a 220 ml max condensate volume, and an actuator lock that can be closed with accessories. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564124
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564124.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Actuator lock
- can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Directly controlled compressed air lter diaphragm regulator
- Max. condensate volume
- 220 ml
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Degree of condensate separation
- 75 %
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1 bar...20 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.4 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 40 µm
- Product weight
- 2400 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Covering material
- PA-reinforced
- Material of spin disc
- POM
