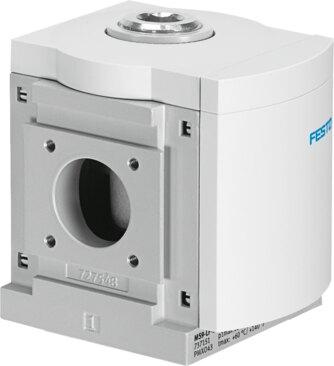

Reference imageConfirm configuration by manufacturer part number.
Festo
564147
Branching module MS9-FRM-G-VS-Y
The Festo 564147 is an industrial component featuring a Size 9 MS-series structural branching module with G1 pneumatic connections 3 and 4, PA-reinforced covering material, and a product weight of 1100 g. Operating within a pressure range of 0 bar to 12 bar and an AC/DC voltage range up to 250 V and 125 V respectively, this unit supports compressed air per ISO 8573-1:2010 [7:4:4] with lubricated operation possible, a corrosion resistance class of CRC 2, and cleanroom suitability of ISO Class 7. It offers universal mounting flexibility in any position via front panel mounting, in-line installation, or accessories, alongside operating, medium, and storage temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564147
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564147.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 bar...12 bar
- Operating voltage range AC
- 0 V...250 V
- DC operating voltage range
- 0 V...125 V
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1100 g
- Type of mounting
- Alternatively: | Front panel mounting | In-line installation | With accessories
- Pneumatic connection 3
- G1
- Pneumatic connection 4
- G1
- Covering material
- PA-reinforced
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Material of mounting bracket
- Die-cast aluminum
- Housing material
- Die-cast aluminum
- Module connector material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564147. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
