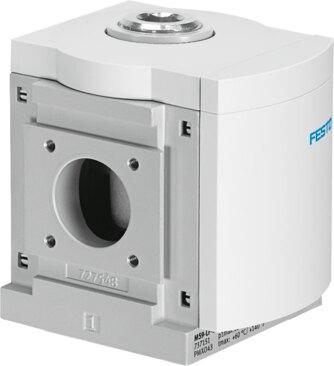

Reference imageConfirm configuration by manufacturer part number.
Festo
564150
Branching module MS9-FRM-NG-VS-Y
The Festo 564150 is an MS-series size 9 branching module with a structural design featuring 1 NPT pneumatic connections 3 and 4, PA-reinforced covering material, and a product weight of 1100 g. Operating within a pressure range of 0 bar to 12 bar and a voltage range of 0 V to 250 V AC or 0 V to 125 V DC, this component handles compressed air as per ISO 8573-1:2010 [7:4:4] and permits lubricated operation across medium, ambient, and storage temperatures of -10 °C to 60 °C. It provides moderate corrosion resistance (CRC 2), VDMA24364-B2-L LABS conformity, ISO 14644-1 cleanroom suitability class 7, and supports any mounting position via front panel mounting, in-line installation, or accessories. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 9
- Series
- MS
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 bar...12 bar
- Operating voltage range AC
- 0 V...250 V
- DC operating voltage range
- 0 V...125 V
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1100 g
- Type of mounting
- Alternatively: | Front panel mounting | In-line installation | With accessories
- Pneumatic connection 3
- 1 NPT
- Pneumatic connection 4
- 1 NPT
- Covering material
- PA-reinforced
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
- Material of mounting bracket
- Die-cast aluminum
- Housing material
- Die-cast aluminum
- Module connector material
- Die-cast aluminum
