Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

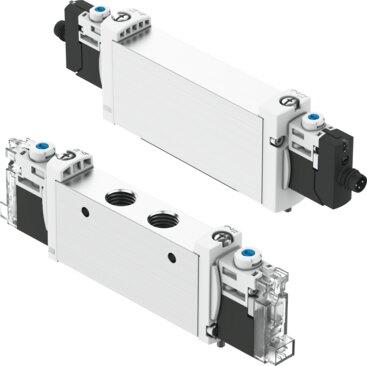

Reference imageConfirm configuration by manufacturer part number.
Festo
564212
Air solenoid valve VUVG
This Festo industrial component features electrical actuation and supports valve functions including 2x3/2 closed monostable, 5/2-way bistable, and 5/3-way closed configurations with a normal nominal flow rate ranging from 90 l/min to 1380 l/min. Built with a piston slide with sealing ring or piston gate valve structural design, it operates at pressures from -0.9 bar to 10 bar and voltages of 5V DC, 12V DC, or 24V DC with mechanical or pneumatic spring reset methods. It includes pneumatic working ports spanning flange, M3 through M7, G1/8, G1/4, and multiple QS push-in fittings, while carrying RCM and c UL us certifications alongside CE marking per EU EMC and low voltage directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564212
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564212.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 90 l/min...1380 l/min
- Pneumatic working port
- Flange | M3 | M5 | M7 | G1/8 | G1/4 | QS-3 | QS-4 | QS-6 | QS-8 | QS-10 | QS-5/32 | QS-1/8 | QS-3/16 | QS-1/4 | QS-5/16 | QS-3/8
- Operating voltage
- 12V DC | 24V DC | 5V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve | Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
