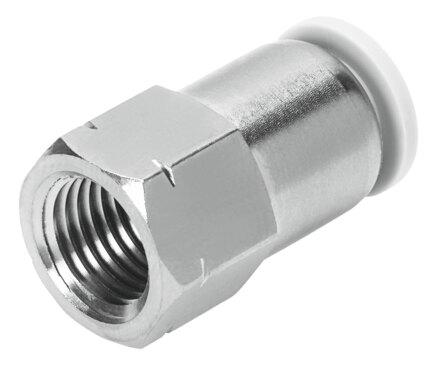

Reference imageConfirm configuration by manufacturer part number.
Festo
564644
Push-in fitting QBF-1/4-1/4-U
The Festo 564644 is a straight industrial component featuring a push-pull structural design with a 0.197 in nominal width and an 11/16 external hexagon mounting type. It connects a 1/4 NPT internal thread to a 1/4" outer diameter pneumatic tubing, utilizing a coated screwed plug seal and a gray releasing ring. Operating across a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and pressures from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi), this RoHS-compliant part supports compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible in any mounting position. This product comes in a pack size of 10, weighs 0.84 oz, exhibits a corrosion resistance class of 1, and meets VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564644
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564644.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.197 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.84 oz
- Type of mounting
- External hexagon 11/16
- Pneumatic connection 1
- Internal thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564644. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
