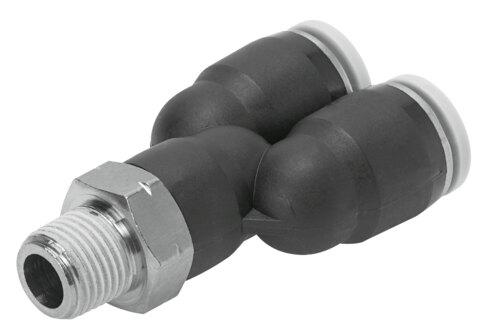

Name: Festo 564685 Push-in Y-fitting QBY-10-32-UNF-3/16-U
Brand: Festo

Push-in Y-fitting QBY-10-32-UNF-3/16-U

The Festo part number 564685 is a standard Y-shape industrial component featuring a nominal width of 0.118 inches and a 10-32 UNF-2A external thread for pneumatic connection 1, paired with a 3/16-inch outside diameter pneumatic tubing connection for pneumatic connection 2. This push-pull structural design incorporates a sealing ring on the screwed plug, an external hexagon 7/16 mounting type, and a gray releasing ring, operating within a pressure range of -13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F using compressed air per ISO 8573-1:2010 [7:-:-]. Delivered in a pack size of 10 with a product weight of 0.367 oz and a maximum tightening torque of 1.11 ft-lbf, it achieves a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity while supporting lubricated operation in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 564685
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 564685.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 0.118 in
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Y-shape
Pack size: 10
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: 0 °C...60 °C
Max. tightening torque: 1.11 ft-lbf
Product weight: 0.367 oz
Type of mounting: External hexagon 7/16
Pneumatic connection 1: External thread 10-32 UNF-2A
Pneumatic connection 2: for pneumatic tubing outside diameter 3/16"
Ambient temperature Fahrenheit: 32 °F...140 °F
Releasing ring color: Gray
Note on materials: RoHS compliant
Housing material: Brass, nickel-plated | PBT
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel
