Festo
564696

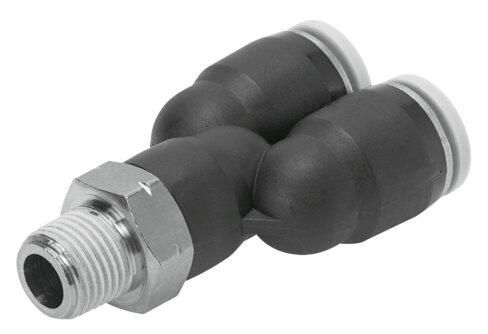

Push-in Y-fitting QBY-1/4-3/8-U
The Festo 564696 is a standard Y-shaped industrial component featuring a 1/4 NPT external thread for pneumatic connection 1 and an external hexagon 11/16 mounting type. Operating via the push-pull principle, this part handles compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.095 MPa to 1 MPa with lubricated operation possible. Built with a coated screwed plug seal and a gray releasing ring, the unit weighs 1.28 oz, offers a nominal width of 0.276 in, and operates within an ambient temperature range of 0 °C to 60 °C (32 °F to 140 °F). Supplied in a pack size of 5, this RoHS compliant component boasts a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity for any mounting position with 3/8" outside diameter tubing on connection 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564696
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564696.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.276 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1.28 oz
- Type of mounting
- External hexagon 11/16
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
