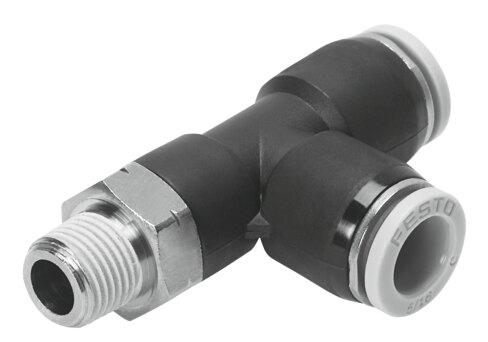

Reference imageConfirm configuration by manufacturer part number.
Festo
564711
Push-in T-fitting QBTL-1/8-1/4-U
The Festo industrial component, part number 564711, is an L-shaped standard unit featuring a lengthwise additional push-in connector, a nominal width of 0.177 in, and a coated screwed plug with an external hexagon 1/2 mounting type. Constructed with a push-pull principle and a gray releasing ring, it has a pneumatic connection 1 of external thread 1/8 NPT and a pneumatic connection 2 for pneumatic tubing outer diameter 1/4", supporting compressed air operation under pressures ranging from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi) across an ambient temperature range of 0 °C to 60 °C (32 °F to 140 °F). Weighing 0.578 oz with a corrosion resistance class of 1 and VDMA24364 Zone III LABS conformity, this RoHS compliant component is packaged in a quantity of 10 and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564711
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564711.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.177 in
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape, additional push-in connector, lengthwise
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.578 oz
- Type of mounting
- External hexagon 1/2
- Pneumatic connection 1
- external thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated | PBT
- Material of threaded seal
- PTFE
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564711. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
