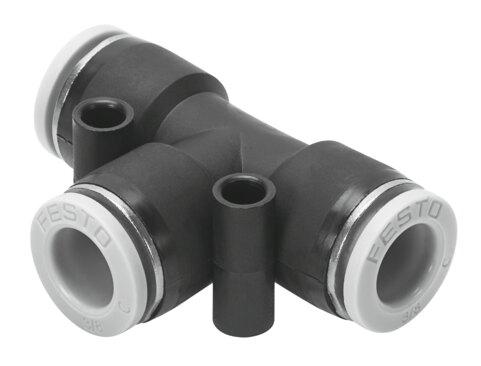

Reference imageConfirm configuration by manufacturer part number.
Festo
564768
Push-in T-connector QBT-1/4T-U
The Festo 564768 is a standard T-shaped industrial component featuring a 0.189-inch nominal width and a push-pull structural design with 1/4" pneumatic connections for both ports 1 and 2. Constructed with a PBT housing, POM gray releasing ring, and RoHS-compliant materials, this pack of 10 components supports an operating pressure range of -13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F using compressed air per ISO 8573-1:2010 [7:-:-]. It offers any mounting position, lubricated operation capability, a product weight of 0.356 oz, corrosion resistance class 1, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.189 in
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.356 oz
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/4"
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
