Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

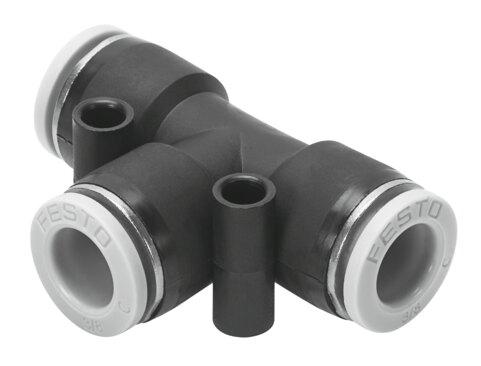

Reference imageConfirm configuration by manufacturer part number.
Festo
564771
Push-in T-connector QBT-1/2T-U
The Festo 564771 is a standard T-shape industrial component featuring a nominal width of 0.354 in and a push-pull structural design with a gray releasing ring. Operating pressure ranges from -13.775 psi to 145 psi across an ambient temperature range of 32 °F to 140 °F, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. Constructed with a PBT housing and a POM releasing ring, this RoHS-compliant part has a product weight of 1.09 oz, a corrosion resistance class of 1, and accommodates 1/2" pneumatic tubing on connections 1 and 2 in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 5.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564771
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564771.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.354 in
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 5
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 1.09 oz
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/2"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564771. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
