564840

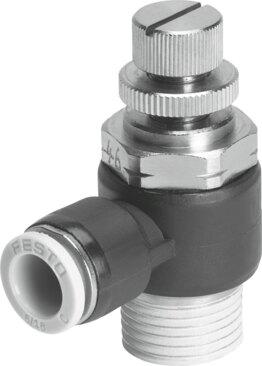

Name: Festo 564840 One-way flow control valve GRLA-10-32-UNF-QB-5/32-U
Brand: Festo

One-way flow control valve GRLA-10-32-UNF-QB-5/32-U

The Festo 564840 is an industrial component featuring an exhaust air flow control non-return function with manual actuation via a slotted screw. This screw-in unit utilizes a QB-5/32 pneumatic connection 1 and a 10-32 UNF-2A pneumatic connection 2, constructed with a nickel-plated brass screwed plug weighing 0.35 oz. It delivers a standard nominal flow rate of 7.63 cfm in the flow control direction and operates within a pressure range of -13.8 psi to 116 psi across an ambient temperature range of 32 °F to 140 °F. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 564840
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 564840.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QB-5/32
Pneumatic connection 2: 10-32 UNF-2A
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in | With external thread
Standard nominal ow rate in ow control direction: 7.63 cfm
Standard nominal ow rate in non-return direction: 5.88 cfm...7.77 cfm
Ambient temperature: 32 °F...140 °F
Mounting position: Any
Operating pressure for entire temperature range: -13.8 psi...116 psi
Standard ow rate in ow control direction 6 -> 0 bar: 13.5 cfm
Standard ow rate in non-return direction at 6 -> 0 bar: 13.5 cfm...14.1 cfm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: 32 °F...140 °F
Max. tightening torque: 1.1 ft-lbf
Product weight: 0.35 oz
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Brass | Nickel-plated
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 564840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
