Name: Festo 564841 One-way flow control valve GRLA-10-32-UNF-QB-3/16-U
Brand: Festo

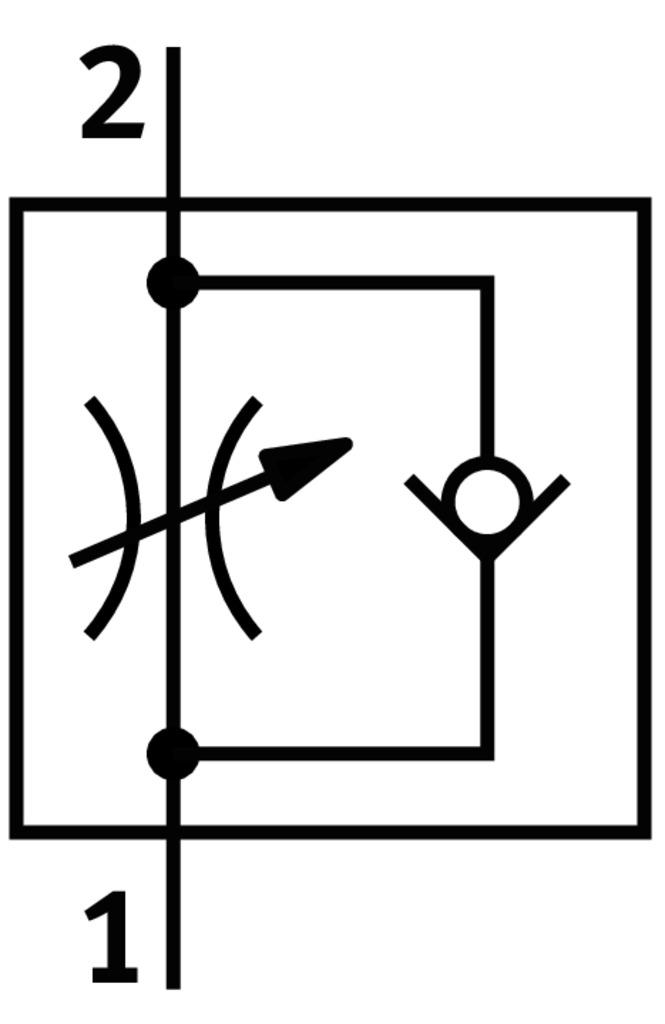

One-way flow control valve GRLA-10-32-UNF-QB-3/16-U

The Festo 564841 is an industrial component featuring an exhaust air flow control non-return function with a QB-3/16 pneumatic connection 1 and a 10-32 UNF-2A pneumatic connection 2. Featuring manual actuation via a slotted screw adjusting element, this screw-in unit operates within a temperature range of 32 °F to 140 °F and supports an operating pressure from -13,8 psi to 116 psi using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Constructed with a nickel-plated brass screwed plug, the 0,34 oz component delivers a standard nominal flow rate of 8,39 cfm in the flow control direction and up to 8,58 cfm in the non-return direction. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 564841
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 564841.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air flow control non-return function
Pneumatic connection 1: QB-3/16
Pneumatic connection 2: 10-32 UNF-2A
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in | With external thread
Standard nominal flow rate in flow control direction: 8,39 cfm
Standard nominal flow rate in non-return direction: 6,33 cfm...8,58 cfm
Ambient temperature: 32 °F...140 °F
Mounting position: Any
Operating pressure for entire temperature range: -13,8 psi...116 psi
Standard flow rate in flow control direction 6 -> 0 bar: 14,8 cfm
Standard flow rate in non-return direction at 6 -> 0 bar: 14,9 cfm...15,4 cfm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 zone III
Temperature of medium: 32 °F...140 °F
Max. tightening torque: 1,1 ft-lbf
Product weight: 0,34 oz
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS-compliant
Seals material: NBR
Hollow bolt material: Brass | Nickel-plated
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 564841. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
