Name: Festo 564844 One-way flow control valve GRLA-3/8-QB-3/16-U
Brand: Festo

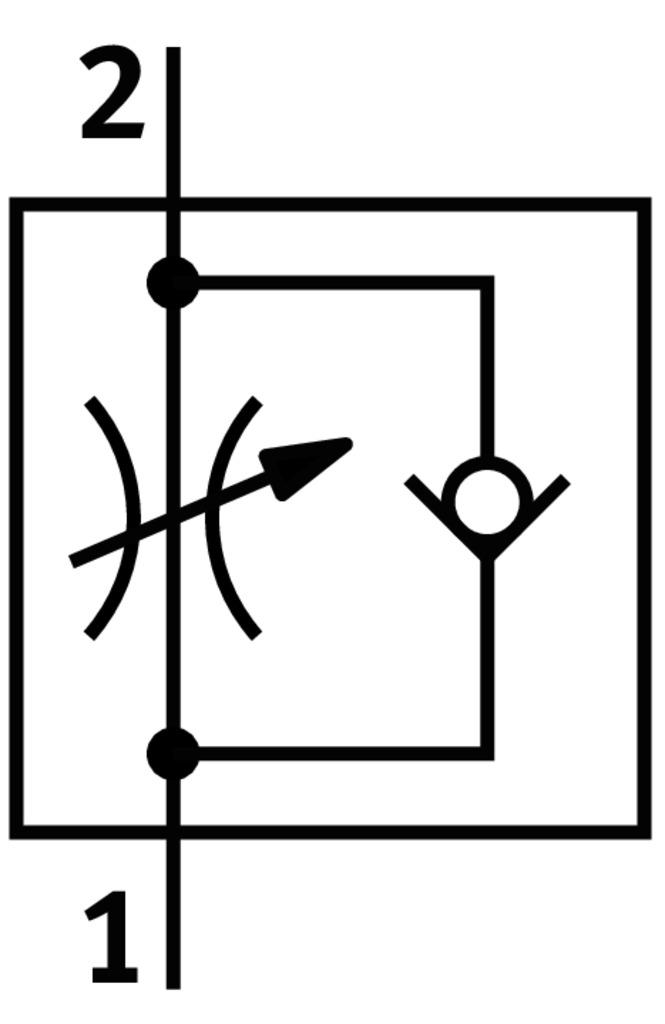

One-way flow control valve GRLA-3/8-QB-3/16-U

The Festo 564844 is an industrial component featuring an exhaust air flow control non-return function with a QB-3/16 pneumatic connection 1 and a 3/8 NPT pneumatic connection 2. Actuated manually via a slotted screw adjusting element, this screw-in mounting unit utilizes a nickel-plated brass screwed plug and operates within a temperature range of 32 °F to 140 °F at pressures from -13,8 psi to 116 psi. It delivers a standard nominal flow rate of 47,6 cfm in the flow control direction and 36,4 cfm to 48,5 cfm in the non-return direction, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 564844
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 564844.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air flow control non-return function
Pneumatic connection 1: QB-3/16
Pneumatic connection 2: 3/8 NPT
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in | With external thread
Standard nominal flow rate in flow control direction: 47,6 cfm
Standard nominal flow rate in non-return direction: 36,4 cfm...48,5 cfm
Ambient temperature: 32 °F...140 °F
Mounting position: Any
Operating pressure for entire temperature range: -13,8 psi...116 psi
Standard flow rate in flow control direction 6 -> 0 bar: 61,5 cfm
Standard flow rate in non-return direction at 6 -> 0 bar: 61,5 cfm...64,2 cfm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 zone III
Temperature of medium: 32 °F...140 °F
Max. tightening torque: 16,2 ft-lbf
Product weight: 2,31 oz
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS-compliant
Seals material: NBR
Hollow bolt material: Brass | Nickel-plated
Releasing ring material: POM
