Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
564845

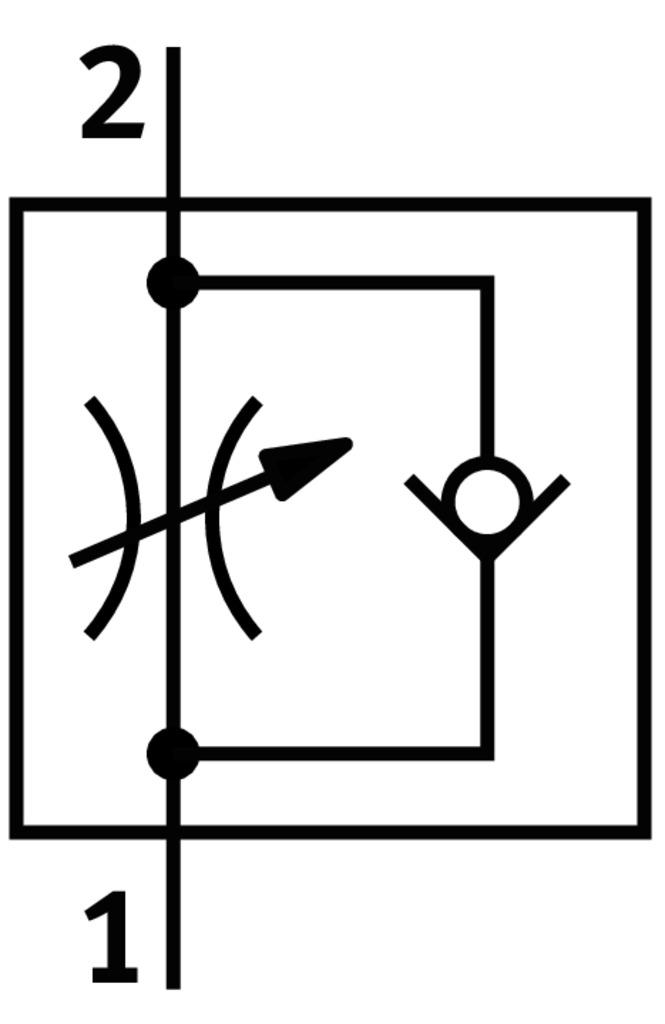

One-way flow control valve GRLA-1/2-QB-5/16-U
The Festo part number 564845 is an industrial component featuring an exhaust air flow control non-return function with manual actuation via a slotted screw. This screw-in unit utilizes a QB-5/16 pneumatic connection 1, a 1/2 NPT pneumatic connection 2, and a nickel-plated brass screwed plug weighing 3.66 oz with a maximum tightening torque of 20.7 ft-lbf. It operates within an ambient and medium temperature range of 32 °F to 140 °F, an operating pressure of -13.8 psi to 116 psi, and accommodates compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564845
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564845.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air flow control non-return function
- Pneumatic connection 1
- QB-5/16
- Pneumatic connection 2
- 1/2 NPT
- Actuation type
- Manual
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in | With external thread
- Standard nominal flow rate in flow control direction
- 190 cfm
- Standard nominal flow rate in non-return direction
- 146 cfm...194 cfm
- Ambient temperature
- 32 °F...140 °F
- Mounting position
- Any
- Operating pressure for entire temperature range
- -13,8 psi...116 psi
- Standard flow rate in flow control direction 6 -> 0 bar
- 266 cfm
- Standard flow rate in non-return direction at 6 -> 0 bar
- 268 cfm...277 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 zone III
- Temperature of medium
- 32 °F...140 °F
- Max. tightening torque
- 20,7 ft-lbf
- Product weight
- 3,66 oz
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS-compliant
- Seals material
- NBR
- Hollow bolt material
- Brass | Nickel-plated
- Releasing ring material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564845. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
