Name: Festo 564846 One-way flow control valve GRLA-1/2-QB-3/8-U
Brand: Festo

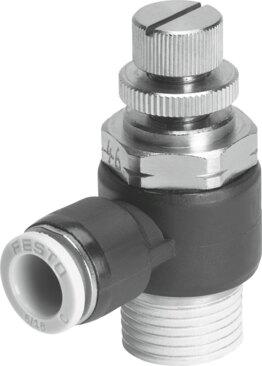

One-way flow control valve GRLA-1/2-QB-3/8-U

The Festo 564846 is an industrial pneumatic component featuring an exhaust air flow control non-return function with manual actuation via a slotted screw. This screw-in component utilizes a QB-3/8 pneumatic connection 1 and a 1/2 NPT pneumatic connection 2, paired with a nickel-plated brass screwed plug weighing 3.85 oz. It delivers a standard nominal flow rate of 188 cfm in the flow control direction and 145 cfm to 192 cfm in the non-return direction, operating within a temperature range of 32 °F to 140 °F and pressures from -13.8 psi to 116 psi using compressed air per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 564846
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 564846.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QB-3/8
Pneumatic connection 2: 1/2 NPT
Actuation type: Manual
Adjusting element: Slotted screw
Type of mounting: Screw-in | With external thread
Standard nominal ow rate in ow control direction: 188 cfm
Standard nominal ow rate in non-return direction: 145 cfm...192 cfm
Ambient temperature: 32 °F...140 °F
Mounting position: Any
Operating pressure for entire temperature range: -13.8 psi...116 psi
Standard ow rate in ow control direction 6 -> 0 bar: 268 cfm
Standard ow rate in non-return direction at 6 -> 0 bar: 268 cfm...279 cfm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: 32 °F...140 °F
Max. tightening torque: 20.7 ft-lbf
Product weight: 3.85 oz
Material of screwed plug: Brass | Nickel-plated
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Brass | Nickel-plated
Releasing ring material: POM
