Festo
564848

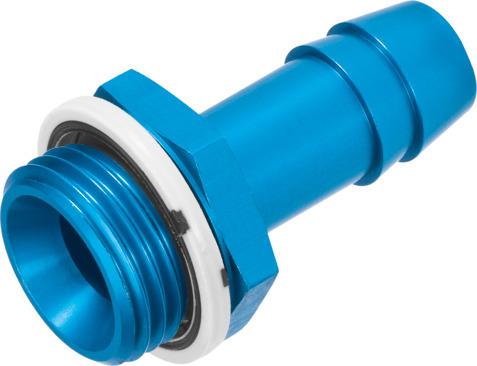

Barb tubing fitting N-3/4-P-19-NPT
Manufactured by Festo, this part number 564848 is a straight design industrial component featuring a 16.5 mm nominal width, an anodized aluminum housing, and a product weight of 42 g. It accommodates an operating pressure range of -0.95 bar to 16 bar and an ambient temperature range of -10 °C to 60 °C when utilizing compressed air as per ISO 8573-1:2010 [7:-:-]. The unit includes a 3/4 NPT external thread for pneumatic connection 1, a connection for 19 mm I.D. tubing for pneumatic connection 2, and a maximum tightening torque of 40 Nm. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 16.5 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 40 Nm
- Product weight
- 42 g
- Pneumatic connection 1
- external thread 3/4 NPT
- Pneumatic connection 2
- For tubing I.D. 19 mm
- Note on materials
- RoHS compliant
- Housing material
- Anodized aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564848. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
