Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

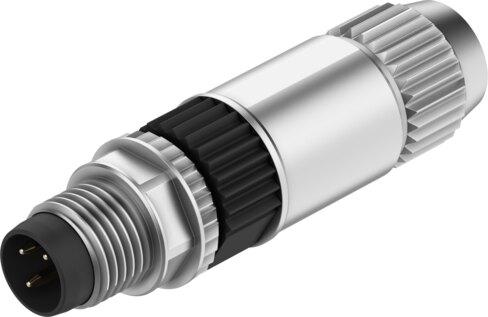

Reference imageConfirm configuration by manufacturer part number.
Festo
564945
Plug NECU-S-M8G3-HX-Q3
Festo Plug NECU-S-M8G3-HX-Q3, part number 564945, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 564945
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564945.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Based on norm
- EN 61076-2-104 | EN 61984
- Certication
- c UL us - recognized (OL)
- Contact durability
- 3
- Product weight
- 7.8 g
- Electrical connection
- 3-pin | M8x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...32 V
- Operating voltage range AC
- 0 V...32 V
- Current rating at 40° C
- 2 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 2.1 mm...3.5 mm
- Individual wire diameter
- 0.05 mm
- Wire diameter
- 0.6 mm...1 mm
- Connection cross section
- 0.1 mm²...0.14 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Brass, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PP | PVC
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564945. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
