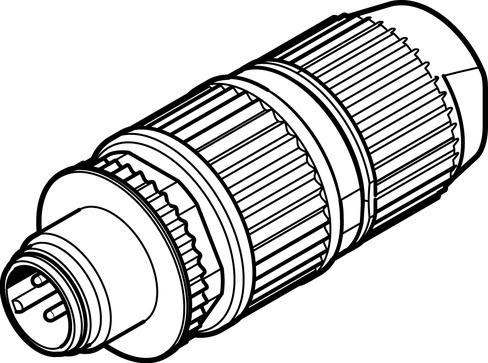

Reference imageConfirm configuration by manufacturer part number.
Festo
564946
Plug NECU-S-M12G3-HX-Q7
The Festo 564946 is an industrial component featuring a 3-pin A-coded straight M12x1 plug with an insulation displacement connector, operating across an AC and DC voltage range of 0 V to 48 V with a 6 A current rating at 40° C. Certified by c UL us - Recognized (OL) and compliant with EN 61076-2-101 and EN 61984 norms, this 32.8 g unit provides IP65 and IP67 degrees of protection within an ambient temperature range of -25 °C to 85 °C. The assembly incorporates nickel-plated die-cast zinc and PA housing materials, accommodating approved cable diameters from 4.7 mm to 6 mm and connection cross sections between 0.34 mm² and 0.75 mm². Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564946
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564946.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Certification
- c UL us - Recognized (OL)
- Contact durability
- 3
- Product weight
- 32.8 g
- Electrical connection
- 3-pin | A-coded | M12x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...48 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 4.7 mm...6 mm
- Individual wire diameter
- 0.1 mm
- Wire diameter
- 1.6 mm...2 mm
- Connection cross section
- 0.34 mm²...0.75 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Die-cast zinc, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564946. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
